제품소개 시스템써포트(SM-2000/3000)

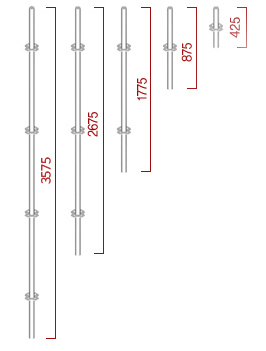

MODEL SIZE(mm) WEIGHT (kg/EA)
SP4804 Ø48.6×425 1.47
SP4809 Ø48.6×875 2.55
SP4818 Ø48.6×1775 5.10
SP4827 Ø48.6×2675 8.00
SP4836 Ø48.6×3575 10.80
SP6004 Ø60.5×425 2.4
SP6009 Ø60.5×875 4.5
SP6018 Ø60.5×1775 8.5
SP6027 Ø60.5×2675 14.3
SP6036 Ø60.5×3575 19.2

MODEL dim A dim B WEIGHT (kg/EA)
SH600 551 600(615) 1.9
SH900 867 915(925) 2.6
SH1200 1151 1200(1215) 3.7
SH1500 1451 1500(1515) 4.3
SH1800 1751 1800(1815) 4.9

MODEL 허용하중(kg)
SH1200C 집중(1300)분포(1850)

MODEL SIZE(mm)
PIN 220

MODEL SIZE WEIGHT (kg/EA)
U.H.BASE450 Ø34(Ø42) x 450 2.97(4.22)
U.H.BASE600 Ø34(Ø42) x 450 3.41(4.80)
U.H.BASE900 Ø38 x 900 4.30

MODEL SIZE WEIGHT (kg/EA)
J.BASE450 Ø34(Ø42) x 450 2.43(3.52)
J.BASE650 Ø34(Ø42) x 600 2.87(4.09)
J.BASE900 Ø38 x 900 3.75

MODEL SIZE(mm)
SP510 B=50,H=100
SP712 B=75,H=125

MODEL SIZE(mm)
SC4815(SC6015) 180(360)
